QP-ESD201 electrostatic Measuring device static field meter

Short Description:

Min Order Quantity:1 Piece/Pieces

Supply Ability:1000 Piece/Pieces per Month

Port:Shanghai

Payment Terms:L/C,D/A,D/P,T/T

package:wooden case/ carton

Dimensions: 123×70.4×21.5mm

response time:<100 ms

Power input:9V alkaline battery

Detection range:0 – ± 60kV

response time:<100ms


Product Detail

Video

Product Tags

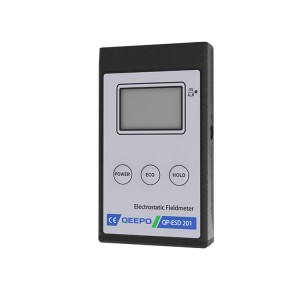

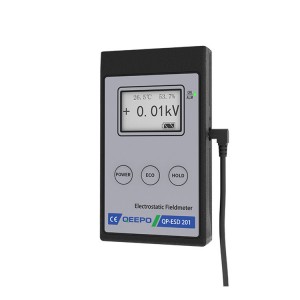

QP-ESD201 Electrostatic Measuring Device Static Field Meter

Product Description

QP-ESD201 static meter is developed by Qipu electrostatic technology, which is specially used to detect static electricity.A new non-contact surface potential sensor is used in the tester,which can effectively detect the static electricity carried by objects, such as plastic, chemical fiber, fur andhuman body.The tester is simple to use and easy to carry. It is an indispensable measuring tool in the process of anti-static and electrostatic treatment.

Performance characteristics

Small handheld size

123x70.4x21.5mm,Beautiful appearance and easy to carry

9dba310ea275dc2e27851ec17b269a0e

Simple operation

The test distance can be determined by the coincidence of two red circles

903326c49b535dfae45c0677d76c603e

LED status indication

Highlight the two-color LED operation indicator, and the green light is always on in the normal state, Out of range buzzer alarm, fault red light alarm

1

Tester with CAN communication

Communication function, external interconnection

2

Performance parameter

Detection range Electrostatic potential test mode: 0 - ± 60kV
ECO key Energy saving (turn off the backlight)
response time <100ms
Measurement accuracy ±5%
Humidity accuracy ±4.5%RH
Temperature accuracy ±1.5℃
LCD display The first line shows the temperature and humidity value
The second line shows the electrostatic voltage value
The third line shows hold (press the hold key display), and battery power
digital display Electrostatic potential test mode display:
0~ ± 20kV is displayed to 2 decimal places, unit: kV
± 20~ ± 60kV display to 1 decimal place, unit: kV
Sound alarm When the power is on, it will ring once
During automatic shutdown, one short sound per second within 5S
When it exceeds the measuring range, there will be continuous sound alarm
Automatic shutdown The power will turn off automatically in five minutes
communication protocol Can communication (RS485 communication function optional)
Operating environment 0-40 ℃, 0-60% RH (no freezing, no condensation)
Power input 9V alkaline battery
Usage time The maximum working time is about 20 hours
size 123x70.4x21.5mm
weight About 147g
Shell material Anti static resin (ABS + PC), black
Warranty period One year



Product structure

3

1. instrument body 2 display screen 3. power key 4. hold key 5. eco key 6. status indicator 7. communication port 8. ground jack 9. reset button 10. battery cover 11. test window 12. red light window
