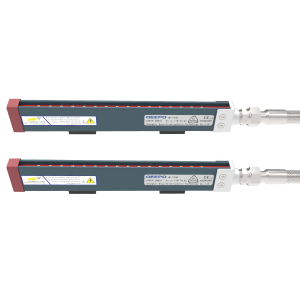

QP-F35B Explosion proof static eliminator bar

Short Description:

input voltage: 220V AC 50/60Hz

working voltage: Max 7000V AC

Rated current Max: 7mA

working frequency: 50/60Hz

working temperature: 0℃~40℃

Explosion proof sign: Ex sc IIB T4 Gc

Explosion proof Certificate: No. GYB19.0001X

Discharge electrode material: Ti

Ion balance: ±100V

Electrostatic removal speed: ≦0.2S

Working humidity: 35%~75%RH

Min Order Quantity:1 Piece/Pieces

Supply Ability:1000 Piece/Pieces per Month

Port:Shanghai

Payment Terms:L/C,D/A,D/P,T/T

package:wooden case/ carton


Product Detail

Video

Product Tags

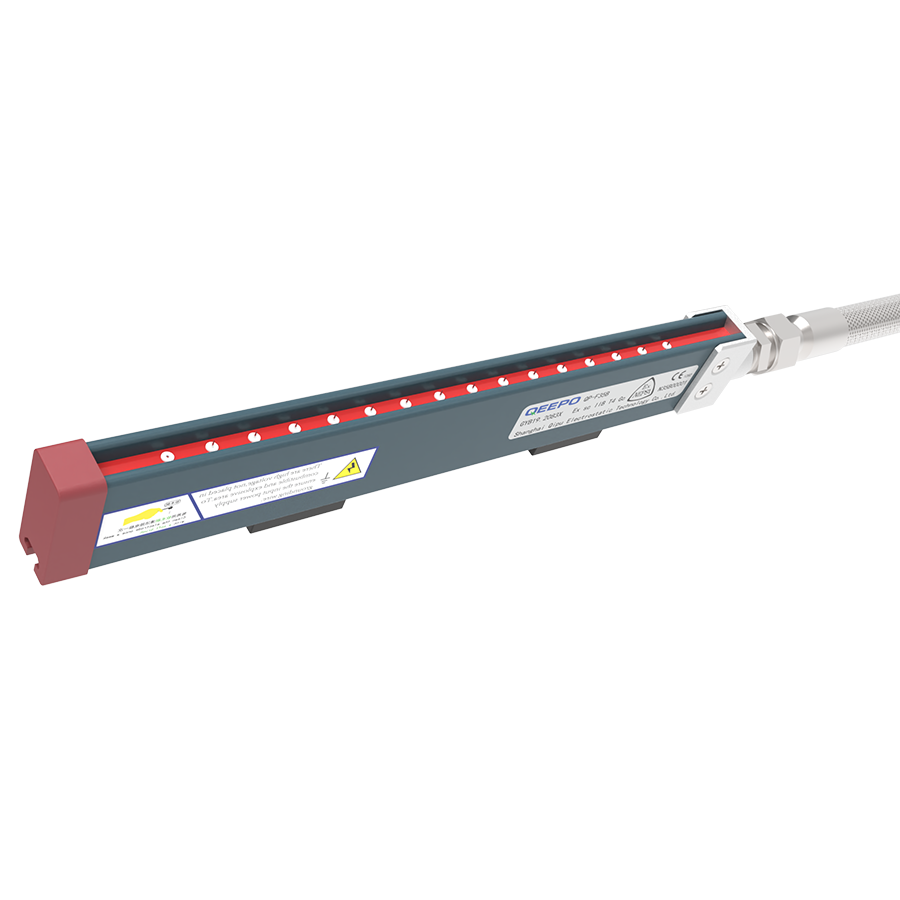

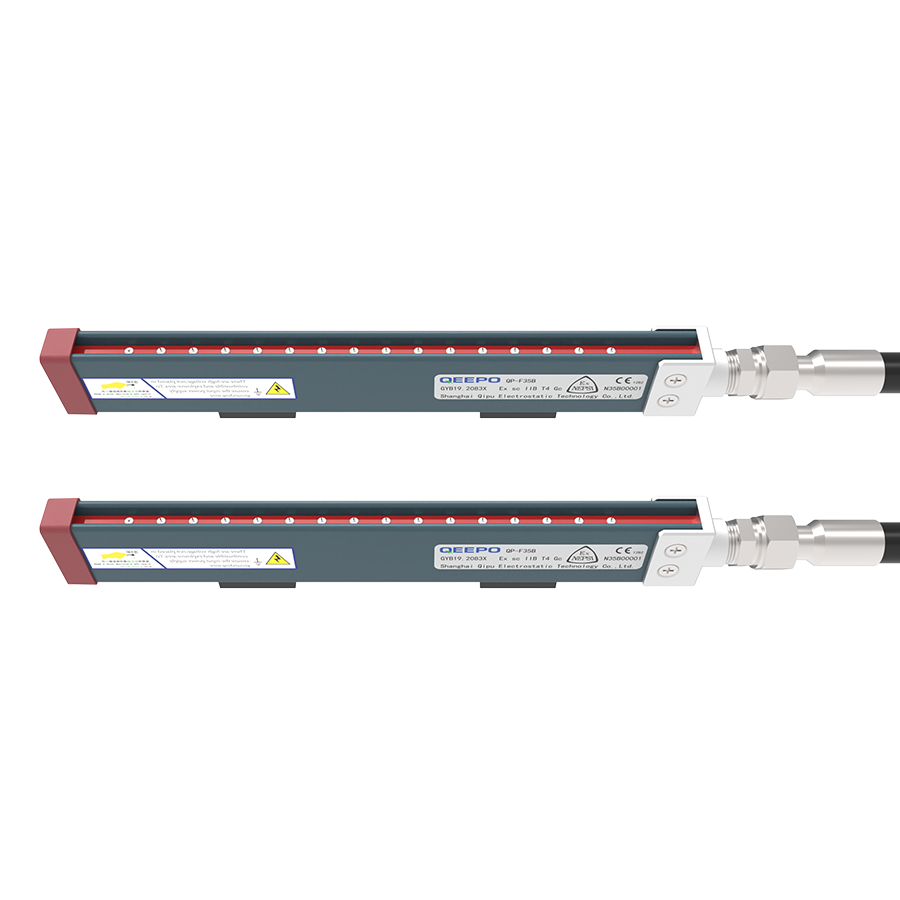

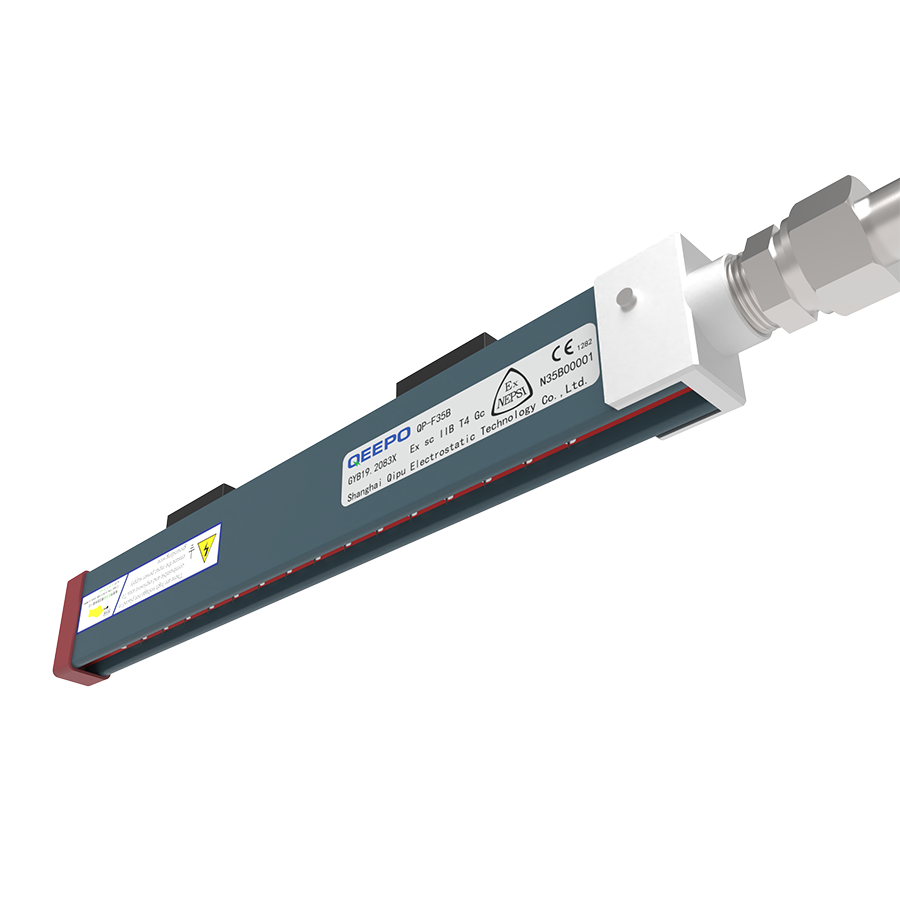

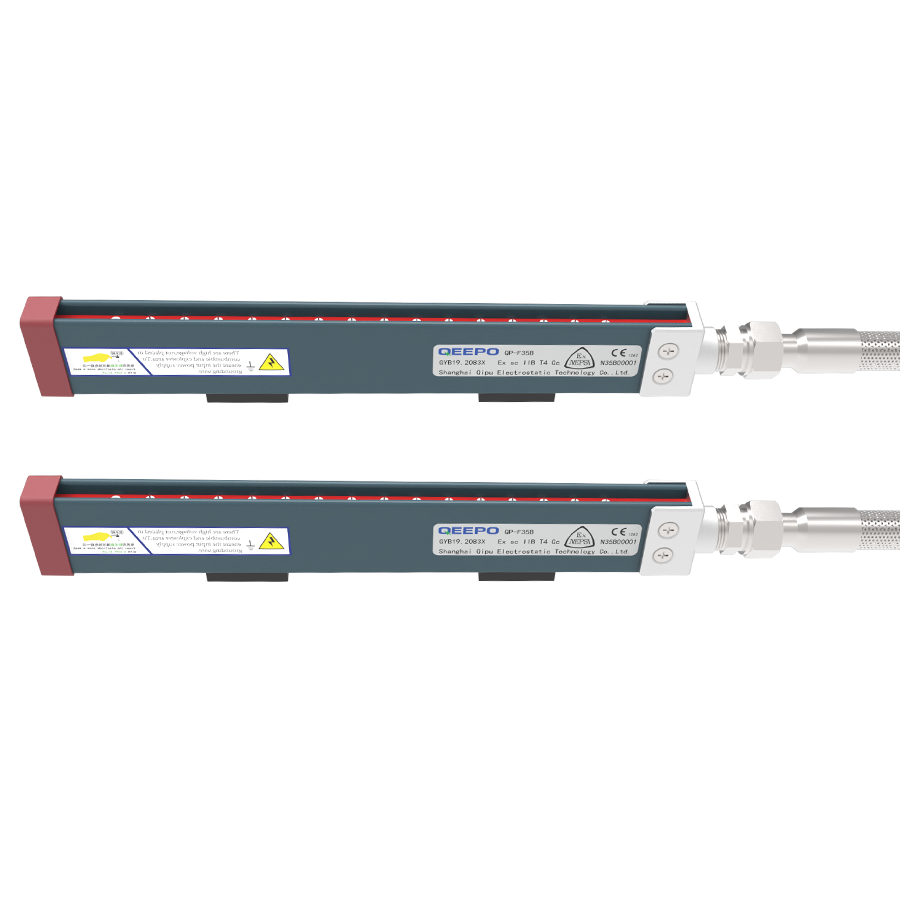

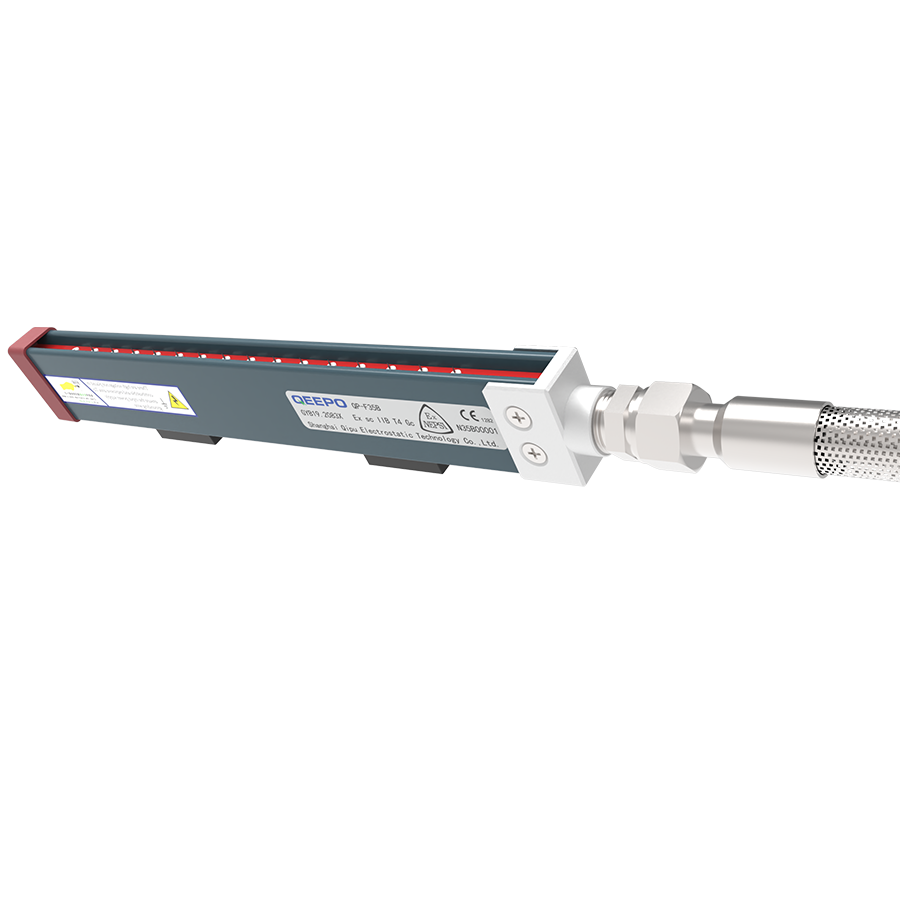

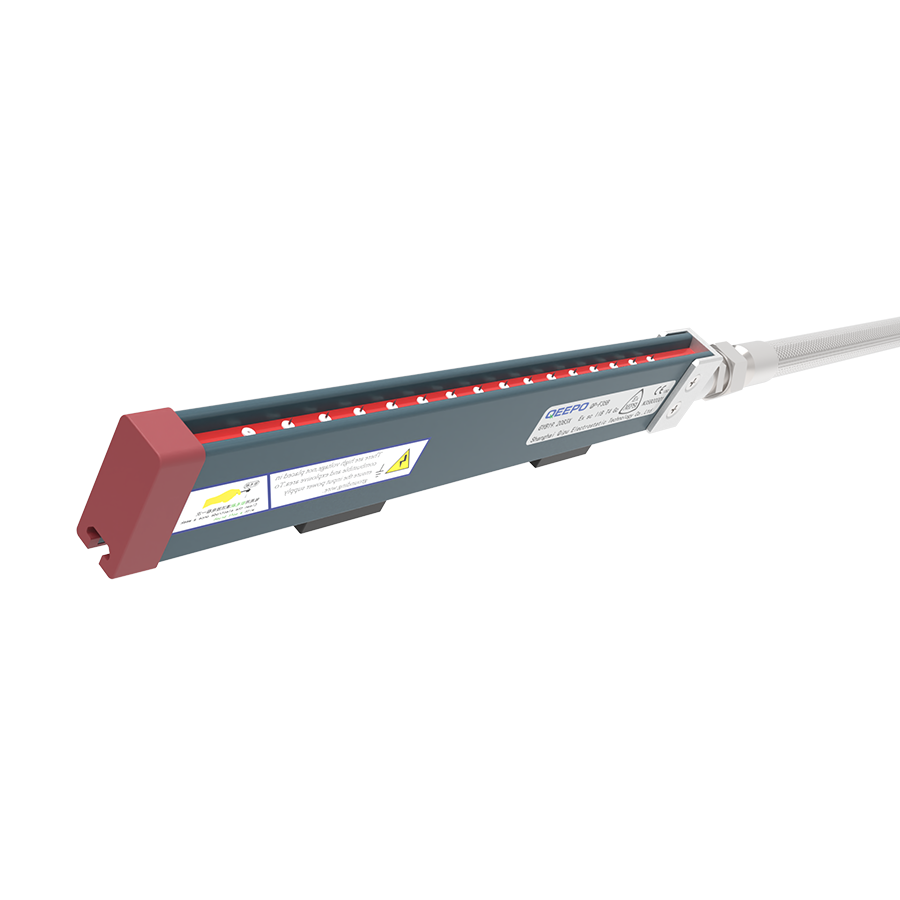

QP-F35B Explosion proof static eliminator bar

Performance description

QP-F35B Explosion-proof electrostatic eliminator has passed the certification and inspection of the national explosion-proof certification agency, and has been tested in the ethylene environment. It can be used for the static elimination of class IIB explosive gas environment. The main body of the product is made of composite glass steel material, and the main body has no metal parts, which greatly improves the insulation of the product and ensures more reliable and safe use of the product; the internal part adopts the full filling structure, which avoids the influence of external water, oil and various gases on the internal structure and ensures the safe and reliable operation of the product; the back part is equipped with an integrated injection molding slider, which is easy to install and use.

Performance parameter

Model

QP-F35B

Explosion proof sign

Ex sc IIB T4 Gc

input voltage

220V AC 50/60Hz

Explosion proof Certificate No.

GYB19.0001X

working voltage

Max 7000V AC

Discharge electrode material

Ti

Rated current

Max 7mA

Ion balance

±50V

working frequency

50/60Hz

Electrostatic removal speed

≦0.3S

working temperature

0℃~40℃

Working humidity

35%~75%RH

Working air pressure

≦0.5Mpa

Working distance

50-600mm

Tracheal size

Φ12

Discharge electrode spacing

15mm/20mm



Certification

QP-F35A-static-eliminator-bar-Explosion-proof-certification
QP-F35A-static-eliminator-bar-ce-ertification

Installation Diagram

QP-F35B-static-eliminator-bar2
QP-F35B-static-eliminator-bar1
