QP-ES High efficiency and safety static eliminator bar

Short Description:

Working Voltage: MAX 7Kv AC

Working current:MAX 5mA

working frequency:50/60Hz

Min Order Quantity:1 Piece/Pieces

Supply Ability:1000 Piece/Pieces per Month

Port:Shanghai

Payment Terms:L/C,D/A,D/P,T/T

package:wooden case/ carton


Product Detail

Video

Product Tags

QP-ES High efficiency and safety static eliminator bar

Features

1、Prevent electric shock design,use of safe;

252c506a1c1448ef820115cfa4de44b0

2、High strength alloy material with fine appearance;The length can be customized according to customer needs

static eliminator bar

3、Electrostatic removal speed ≤ 0.1s

Electrostatic removal speed ≤ 0.1s

4、Equipped with high-voltage power supply, it has good static electricity removal performance, wide application range and convenient operation

static eliminator

3、Excellent destatic performance, widely applicable scope;

4、Using special technology to isolate the electrode, the electrostatic performance is better.

Performance parameter

TYPE QP-ES
Working voltage MAX 7Kv AC
Working current MAX 5mA
working frequency 50/60Hz
operation mode Power frequency AC
Working distance 3~15cm
Recommended installation distance 3~5cm
Discharge electrode spacing 25mm
Discharge electrode material SS. / W
length 80~4000mm
working temperature 0~50℃
Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage ± 1kV ~ ± 100V;
test instrumentation:CPM374

 3D Installation Diagram

QP-ES-High-efficiency-and-safety-static-eliminator-BAR-3D Installation-case

Application

Printing industry

Printing industry

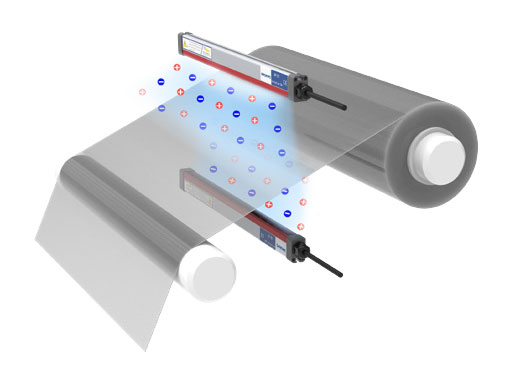

Plastic industry

Plastic industry

Logistics industry

Logistics industry

Electronic industry

Electronic industry

Construction industry

Construction industry

Automobile industry

Automobile industry

Installation Case

Installation of electrostatic eliminator on coating winder

Installation of electrostatic eliminator on coating winder

Installation of electrostatic eliminator on slitting machine

Installation of electrostatic eliminator on slitting machine

Installation of electrostatic eliminator for extruder

Installation of electrostatic eliminator for extruder

Installation of electrostatic eliminator on Slitter

Installation of electrostatic eliminator on Slitter

Installation of electrostatic eliminator for film coating machine

Installation of electrostatic eliminator for film coating machine

Installation of electrostatic eliminator on yarn frame

Installation of electrostatic eliminator on yarn frame
