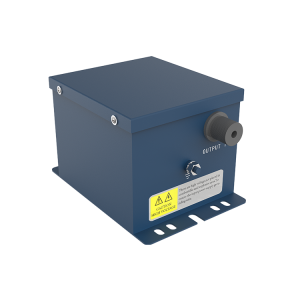

QP-HD Static Generator Power Supply for static eliminator bar
QP-HD series static eliminator power supply
power supply for static bar
QP-HD-I power supply
1 power supply for 1 static bar
QP-HD-II power supply
1 power supply for 2 static bar
QP-HD-IV power supply
1 power supply for 4 static bar
Features
1.Low power consumption, high energy, safety and reliability, excellent performance.
2.Sealing damp-proof structure, internal glue sealing, suitable for high humidity environment.
3.High-performance magnetic flux leakage protection device, with over-voltage, short-circuit protection characteristics, safe and reliable.
4. Easy to operate and strong environmental applicability.
Technical Parameter
The Overall Dimension Of QP-HD-I/II Power Supply Is 168.5 * 121 * 106mm (L * W * H)
The Overall Dimension Of QP-HD-IV Power Supply is 213 * 180 * 113.7mm (L * W * H)
The Power Is 28W/50W. The Input Voltage Is 220V/50HZ
The Output Voltage Is 4/5.6/6/7KV (Optional By The Customer). The Output Current Is ≤ 5mA
The Length Of Power Line Is 1.8m/3m, And The Working Temperature Is 0 ℃~65 ℃
