QP-E30-I air source static eliminator bar

Short Description:

Operating Voltage: 220V/50Hz or 110V/60Hz

Working Distance: 30~350mm

Min Order Quantity:1 Piece/Pieces

Supply Ability:1000 Piece/Pieces per Month

Port:Shanghai

Payment Terms:L/C,D/A,D/P,T/T

package:wooden case/ carton

Send email to us Download as PDF

Product Detail

Video

Product Tags

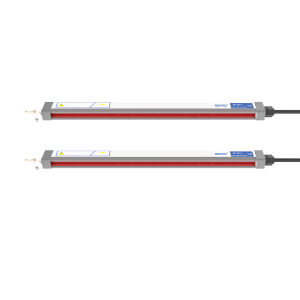

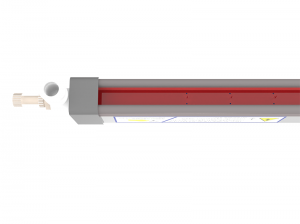

QP-E30-I Air Source Static Eliminator Bar

QP-E30-I is an air source electrostatic eliminator with anti electric shock design, safe to use, high-strength alloy material, exquisite appearance, excellent anti-static performance, wide application range, fast anti-static speed, long distance, and also capable of dust removal.

Features

1、Prevent electric shock design，use of safe；

2、High strength alloy material with fine appearance；

3、Excellent destatic performance, widely applicable scope;

4、In addition to the speed of static electricity, distance and dust can be removed.

Performance parameter

Type	QP-E30-I
Working Voltage	MAX7Kv AC	Working Air Pressure	0.2~0.5MPa
Working Current	MAX5mA	Discharge Electrode Spacing	25mm
Working Frequency	50/60Hz	Discharge Electrode Material	SS./W
Working Mode	Pulse AC	Length	80～2300mm
Working Distance	30~350mm	Working Temperature	0~50℃
Recommended Installation Distance	50~100mm	Test Conditions	Temperature(23±3)℃;Humidity(50±5)%; Testing Voltage±1KV~±100V;
Tracheal Size	Φ8	Working Humidity	0～70%RH(No Freezing,No Condensation)
