QP-ES-I safety air source static eliminator bar

Short Description:

Operating Voltage: 220V/50Hz or 110V/60Hz

Min Order Quantity:1 Piece/Pieces

Supply Ability:1000 Piece/Pieces per Month

Port:Shanghai

Payment Terms:L/C,D/A,D/P,T/T

package:wooden case/ carton


Product Detail

Video

Product Tags

QP-ES-I safety air source static eliminator bar

Introduction

QP-ES-I Is An Air Source Type Electrostatic Eliminator, Equipped With A High voltage Power Supply For Use Together. It Adopts International Anti-static Technology And Has Excellent Anti-static Performance. The Discharge Electrode Is Specially Designed So That There Is No Electrostatic Shock Reaction Even When In Contact With The Discharge Electrode. Double Vent Design, Long-distance Operation, Excellent Static Electricity Elimination Effect, And Dust Removal Effect.
QEEPO QP-ES-I ionizer air bar

Features

QEEPO QP-ES-I ionizer air bar
Anti Electric Shock Design
Use Safety
4

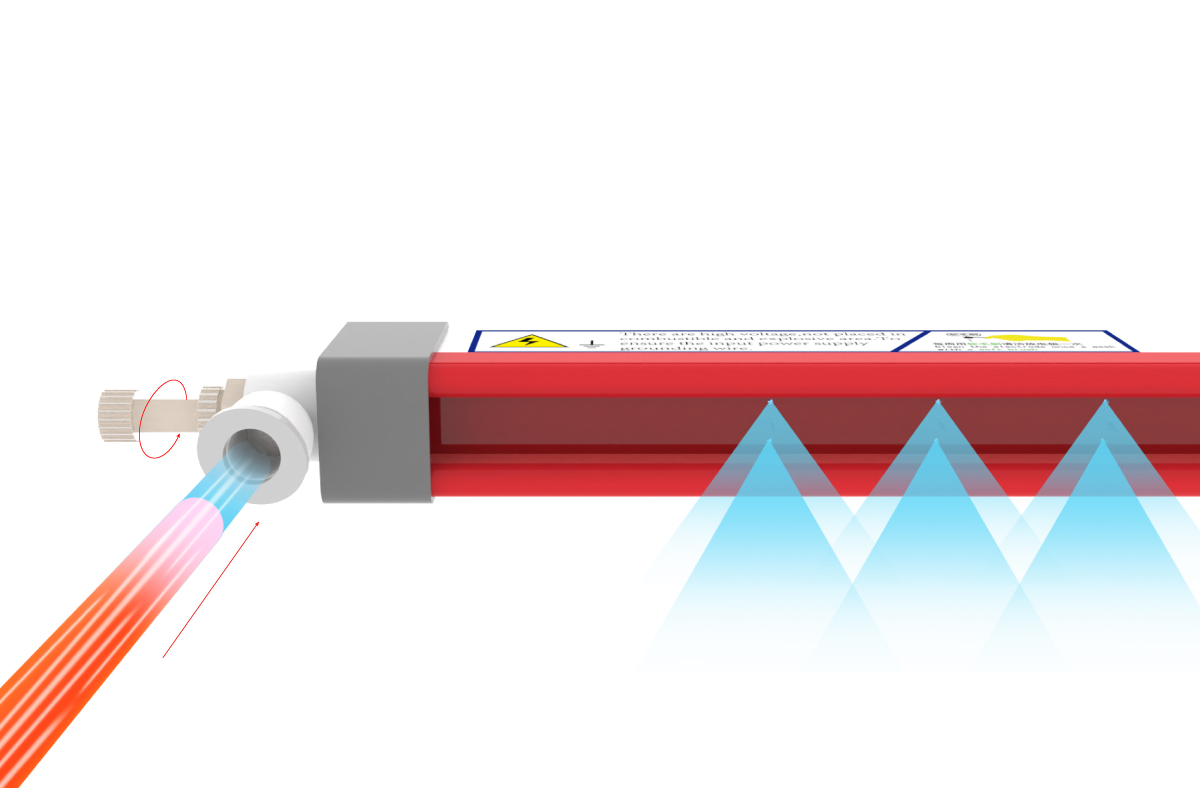

Long Distance Electrostatic Removal
Double Vent Design For Long-distance Operation, With A Working Distance Of Up To 450mm And Dust Removal Effect
2
5
Better Anti-static Performance
Static Removal Speed ≤ 0.1 Seconds
3
Wide Application Range
Widely Used In The Printing Industry, Plastic Industry, Textile Industry, Medical Industry And Other Industrial Environments For Static Electricity Removal
Exquisite Appearance
High Strength Alloy Material
6
Configure High-voltage Power Supply For Use Together
Safe And Reliable With Excellent Performance

Performance parameter

TYPE QP-ES-I
Working Voltage MAX 7Kv AC
Operating Current MAX 5mA
Working Frequency 50/60Hz
Operation Mode Power Frequency AC
Working Distance 30~100mm
Recommended Installation Distance 30~50mm
Gas Pipe Size Φ8
Operating Air Pressure 0.2~0.5MPa
Discharge Electrode Spacing 25mm
Discharge Electrode Material SS. / W
Length 80~4000mm
Working Temperature 0~50℃
Operating Humidity 0 ~ 70% RH (No Freezing, No Condensation)
Test Conditions Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test Voltage ± 1KV - ± 100V;

Certification

工业静电消除器LVD_00
工业静电消除器EMC_00
UKCA 静电测试仪_00
Static Eliminator EMC(UKCA)_00

Installation Diagram

QP-ES-I-safety-air-source-static-eliminator-Installation-case1
QP-ES-I-safety-air-source-static-eliminator-Installation-case2

 3D Installation Diagram

QP-ES-I safety air source static eliminator 3D Installation case
