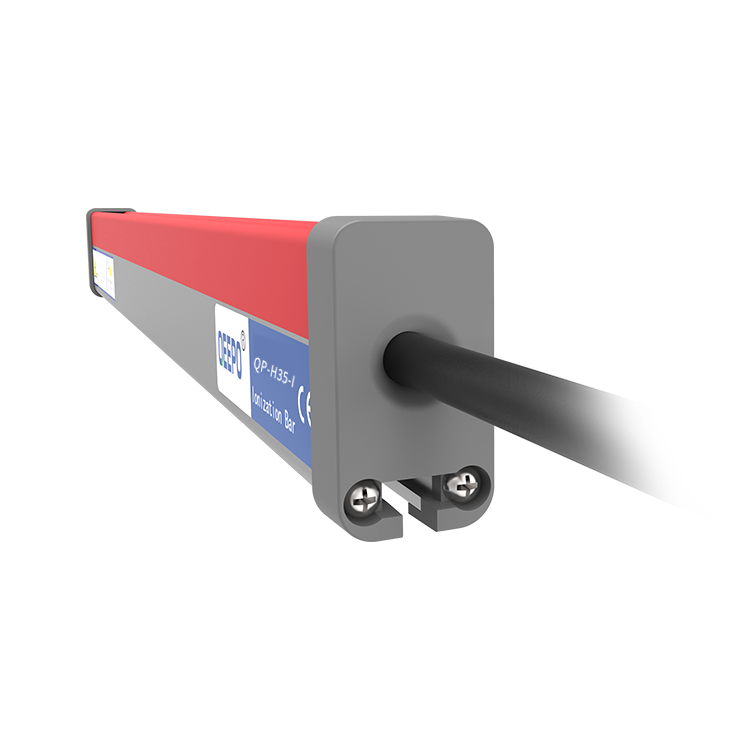

QP-H35-I Stable static eliminator bar

working voltage: 4KV～7KV

Working distance: 30～200mm

Min Order Quantity:1 Piece/Pieces

Supply Ability:1000 Piece/Pieces per Month

Port:Shanghai

Payment Terms:L/C,D/A,D/P,T/T

package:wooden case/ carton

Product Detail

Features

1、The outer part is made of self-developed alloy plastics with lower metal materials, and the inner part is full-encapsulated structure.

2、Innovative structure design, excellent ion balance, greatly increase ion production;

3、Internal coupling current limiting structure has better safety performance and can be used in many dangerous areas.

4、T-groove fixed structure is adopted, which is simple and convenient to install.

Performance parameter

TYPE	QP-H35-I
Working voltage	MAX 7Kv AC
Working current	MAX 5mA
working frequency	50/60Hz
operation mode	Power frequency AC
Working distance	3~20cm
Recommended installation distance	3~5cm
Discharge electrode spacing	20mm
Discharge electrode material	SS. / W
length	120~4000mm
working temperature	0~50℃
Temperature (23 ± 3) ℃; Humidity (50 ± 5)%; Test voltage ± 1kV ~ ± 100V;
test instrumentation：CPM374
