QP-HE20 ionizing bar high voltage power supply for static eliminator bar

Short Description:

Output Voltage: 4.6/5.6/7KV (Optional)

Min Order Quantity:1 Piece/Pieces

Supply Ability:1000 Piece/Pieces per Month



Payment Terms:L/C,D/A,D/P,T/T

package:wooden case/ carton

Product Detail

Product Tags

QP-HE20 Intelligent High Voltage Power Supply is an efficient, safe and intelligent product developed and designed by Qipu. It has detection, protection, and indication functions for short circuit, ignition, undervoltage, overload, and overvoltage faults. It can detect the operating status of the product in real time and quickly cut off the output in case of abnormalities, ensuring the safety of the product and operators in real time, and display the working status through the display interface; Real time display of working voltage, intuitive viewing of equipment working parameters, and display of fault codes in case of faults; The high-voltage plug adopts a brand new design without external grounding wire, avoiding the danger caused by poor contact and disconnection of the grounding wire; An external port is also provided, which can output working status signals.

Power-Supply (2)
Output Voltage 4.6/5.6/7KV (Optional)
Low Operating Cost (28W Power)
Power-Supply (3)

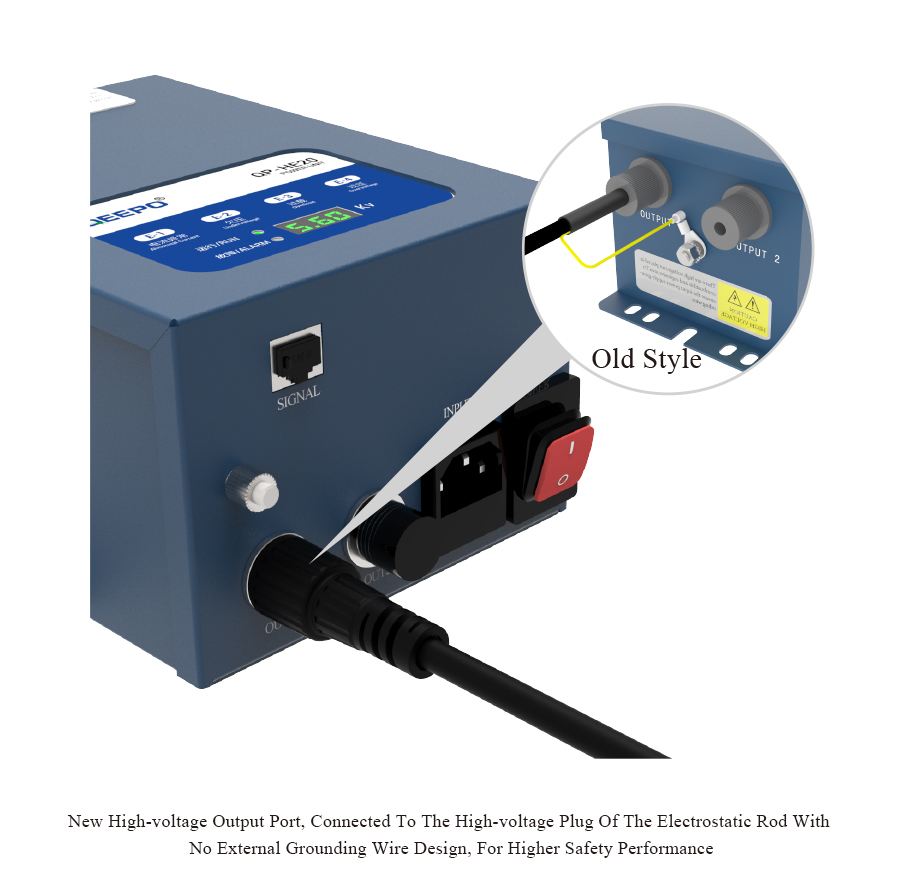

The New High-voltage Connection Line Integrates A Grounding Wire,
Which Is More Convenient And Safer Than The Old Split Connection
Power-Supply (4)

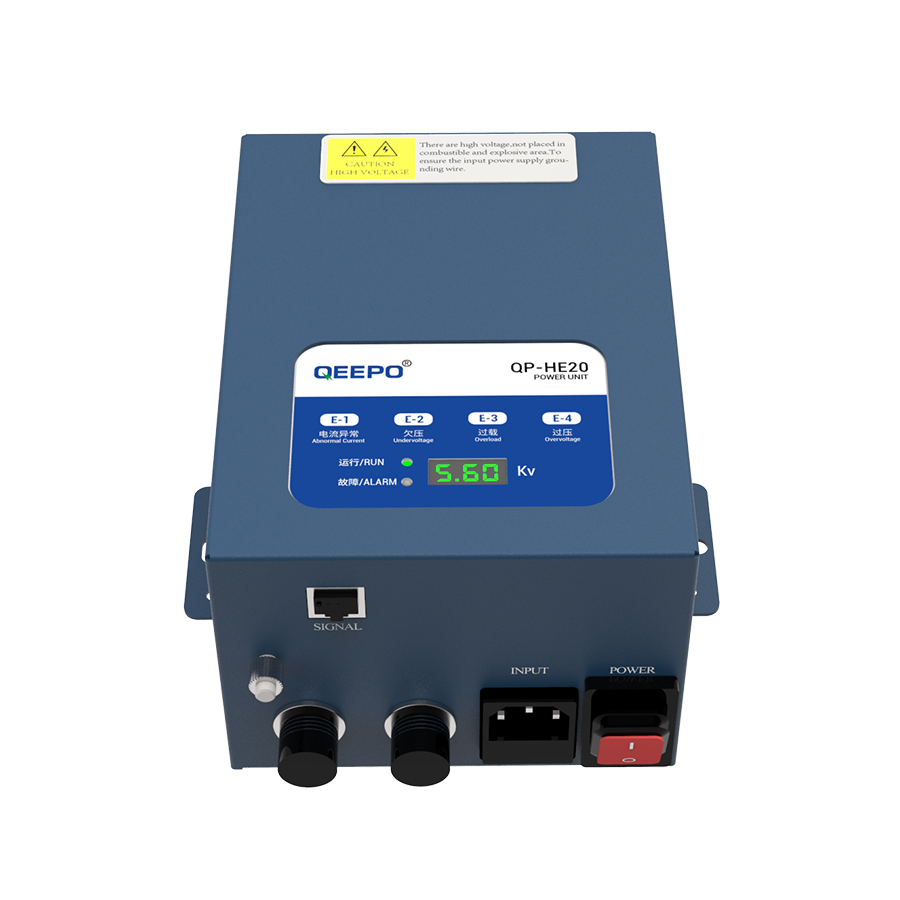

The indicator light displays the working status, and the digital tube displays the working voltage

Power-Supply (5)

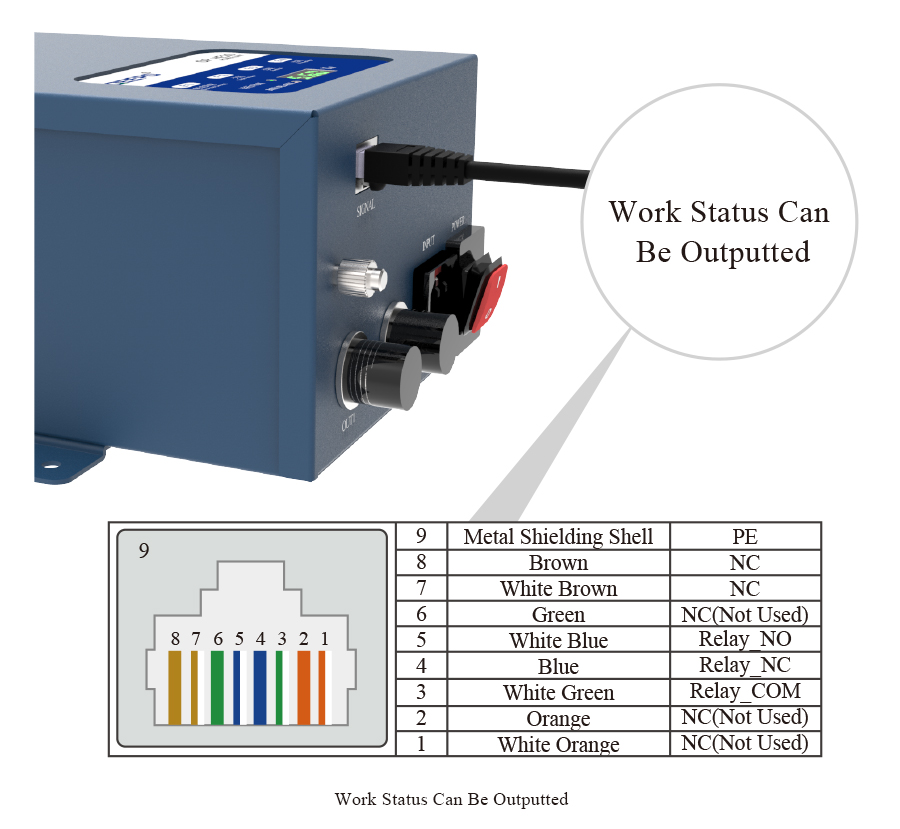

Work Status Can Be Outputted
Power-Supply (6)

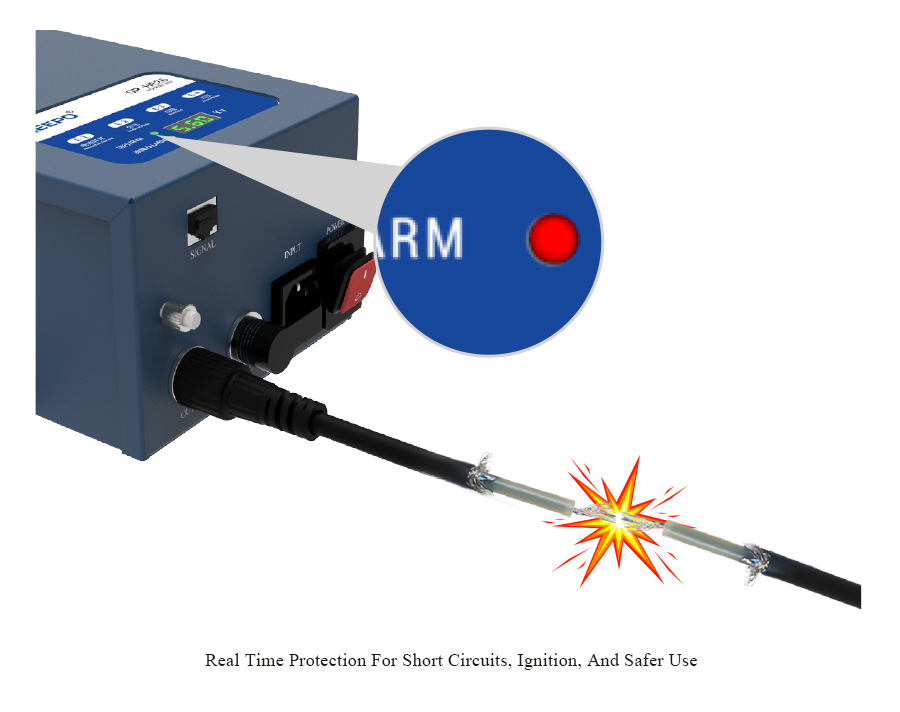

Real Time Protection For Short Circuits, Ignition, And Safer Use
Power-Supply (7)

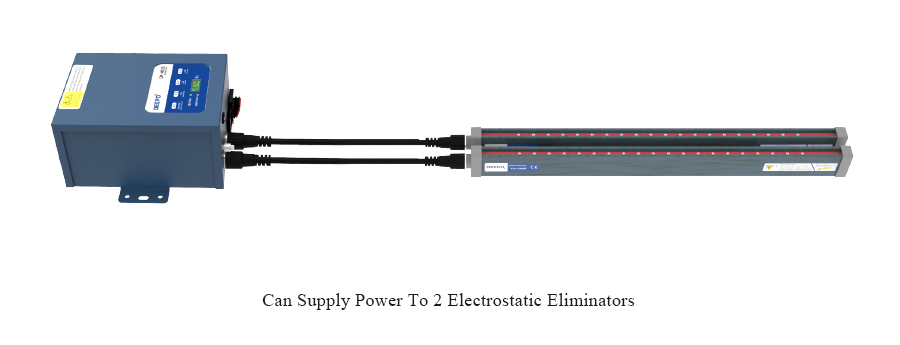

Can Supply Power To 2 Electrostatic Eliminators

performance parameter

Model QP-HE20
Input Voltage 220V/50Hz Maximum Load 12m(4.6/5.6KV) 4.5m(7KV)
Power 28W External Dimensions L * W * H 192*180*105.5mm
Output Voltage 4.6/5.6/7KV (Optional) Weight 3.2Kg
Output Current MAX 5mA Working Temperature 0~50℃
Number Of Connected Loads 2 Working Humidity 0~70%RH(No Freezing, No Condensation)

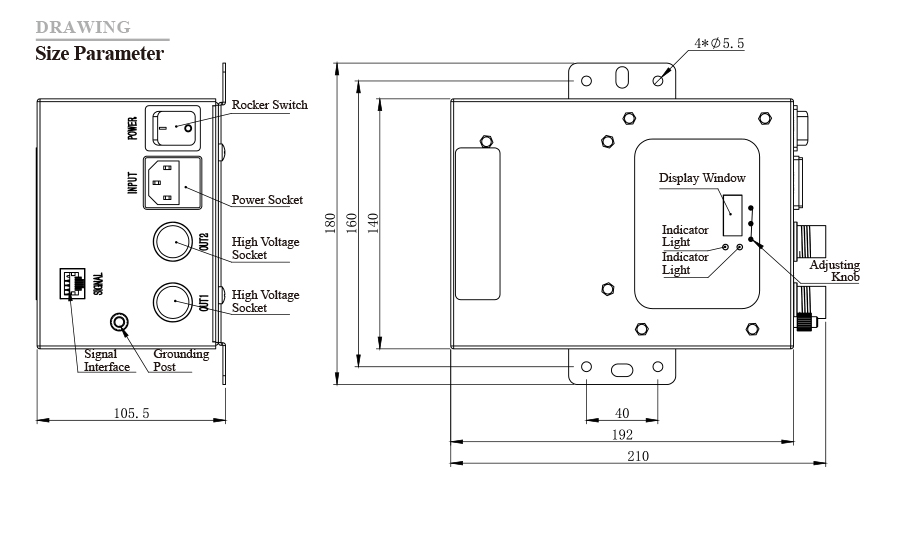

Size Parameter
