QP-EH electrostatic generator For Temporary Bonding And Adsorption

Short Description:


Product Detail

Product Tags

QP-EH Electrostatic Generator For Temporary Bonding And Adsorption

QP-EH Is An Electrostatic Generator That Is Used For Temporary Bonding And Adsorption By Electrostatic Generation. It Adopts A New High-voltage Technology. The Power Supply Is Simple To Operate, Convenient To Install, And Has A Complete Protective Circuit. It Is Suitable For Bonding, Perforation Detection, Charged Adsorption, Material Separation And Other Applications.

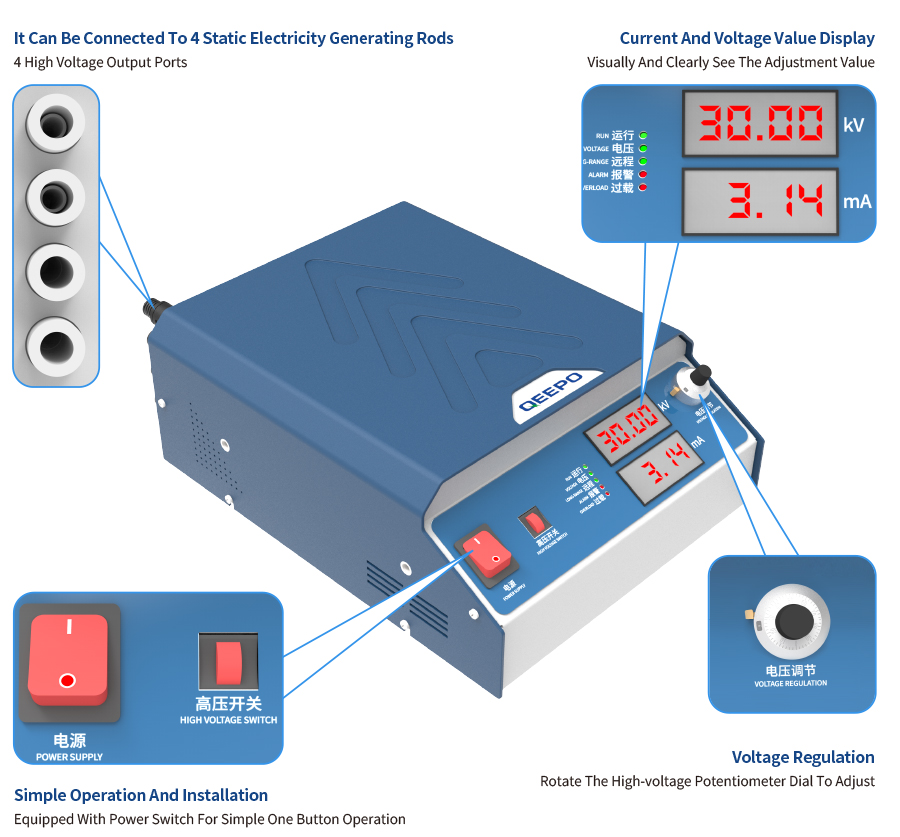

Electrostatic-Generator-profile_05

Performance parameter

MODEL QP-EH
Input Voltage 220V 50/60Hz
Power 150W
Output Voltage +30KV Or -30KV
Overall Dimension L * W * H 240*301.5*115
Output Current 5mA
Working Temperature 0~50℃
Operating Humidity 0~70%RH(No Freezing And Condensation)

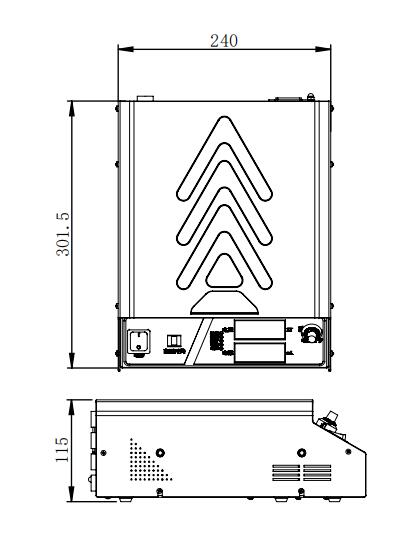

Product size

QQ截图20230515163707
